Envision Single Hung Window

Single-Hung Envision Windows at Vector

Vector’s Envision Single-Hung vinyl windows offer durability and performance without sacrificing aesthetics. A constant force balance system allows Envision single-hung windows to open and close with ease, with tilt latches that make cleaning effortless. Envision single-hung vinyl windows are available in a wide range of standard window sizes and configurations in addition to custom options. Mix and match standard and geometric Envision windows to create a custom look specifically for your home!



Ultimate Energy Efficiency
Want to achieve the ultimate in energy savings? Our Envision Single-Hung vinyl windows are available with triple-pane glass, which will qualify for the new Energy Star® "Most Efficient" product category.



Performance
Telescoping welded sill detail improves performance and structural rigidity. Our high-performance sloped sills are made from a single extrusion, which makes them stronger and more durable. Multi-chambered extrusions and storm interlock improve energy efficiency and structural performance.



Easy Operation
Constant force balances provide extra lift assistance for easy operation, while our tilt latches allow the bottom sash to tilt in for easy cleaning from the inside.



Strong Seal
The integrated full-perimeter nailing fin and triple weather seal ensure a weathertight seal to reduce drafts and protect against leaks.



Continuous Head & Sill
Envision Single-Hung vinyl windows have a continuous head and sill on multiple wide units up to eight feet wide. This provides clean sight lines, and ensures there’s more visible glass to enjoy.

Features

  • 3-1/4" Thick Main Frame
  • Multi-Chambered Extrusion
  • Full-Perimeter Integrated Nail Fin
  • Fusion-Welded Main Frame & Sash
  • 3/4" Dual Pane Warm-Edge Insulated Glass
  • LoE and Argon
  • Tilt-In Sash for Easy Cleaning
  • Slope Sill
  • Color Coordinated Hardware
  • Extruded Lift Rail
  • Fiber Mesh Screen
  • Triple Weather Stripping
  • Storm Interlock

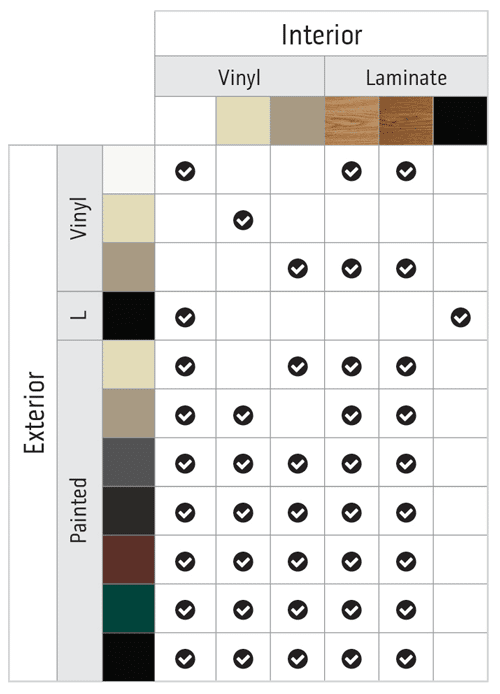

Color Options

*On black laminate windows and doors, there may be components or areas of the unit that are white in color based on product types and option selections.  Please see your local authorized Vector Windows and Door dealer for details.

Interior Color Options

Interior Colors

White Swatch
Almond Swatch
Clay Swatch
Black Laminate Swatch

White

Almond

Clay

Black Laminate

Light Woodgrain Laminate Swatch

Light Woodgrain Laminate

Dark Woodgrain Laminate Swatch

Dark Woodgrain Laminate

*On black laminate windows and doors, there may be components or areas of the unit that are white in color based on product types and option selections.  Please see your local authorized Vector Windows and Door dealer for details.

Exterior Color Options

Exterior Colors

White Swatch
Almond Swatch
Clay Swatch
Black laminate

White

Almond

Clay

Black Laminate

Painted Exterior Color Options

Almond Swatch
Clay Swatch
Terratone Swatch
Bronze Swatch
Black Swatch

Almond

Clay

Terratone

Bronze

Black

Cocoa Swatch
Hunter Green Swatch

Cocoa

Hunter Green

*On black laminate windows and doors, there may be components or areas of the unit that are white in color based on product types and option selections.  Please see your local authorized Vector Windows and Door dealer for details.

Grid Color Options

Flat Grids

White finishing example
Almond finishing example
Clay finishing example
Black finishing example

White

Almond

Clay

Black

White and dark woodgrain finishing example
White and LWG finishing example
Clay and dark woodgrain finishing example
Clay and light woodgrain finishing example

White/Dark Woodgrain

White/LWG

Clay/Dark Woodgrain

Clay/Light Woodgrain

Contoured Grides

White contoured finishing example
Almond contoured finishing example
Clay contoured finishing example
Black contoured finishing example

White

Almond

Clay

Black

Black and white contoured finishing example

Black/White

1" Flat

Flat White finishing example
Flat almond finishing example
Flat Clay finishing example
Flat Black finishing example

White

Almond

Clay

Black

Extension Jamb Color Options

Extention Jambs

Laminate Jambs

White laminate Jambs sample swatch
almond laminate Jambs sample swatch
Clay laminate Jambs sample swatch
Black laminate laminate Jambs sample swatch
Light oak laminate laminate Jambs sample swatch
Dark Oak laminate laminate Jambs sample swatch

White

Almond

Clay

Black Laminate

Light Oak Laminate

Dark Oak Laminate

Wood Veneer. Other species available upon request.

Oak laminate Jambs sample swatch
Pine laminate Jambs sample swatch
Maple laminate Jambs sample swatch
Poplar laminate Jambs sample swatch
Primed laminate Jambs sample swatch

Oak

Pine

Maple

Poplar

Primed

Options

  • Custom Vent Height
  • Extension Jambs (loose or applied)
    • Limits
      • Window Opening Control Device (WOCD)
      • 4" Opening Limit
    • Receiver Loose or Applied
      • 3/4"
      • 5/8"
    • Custom Sizing
    • Upgraded Screens
      • Aluminum Material
      • Clearscene Screen
      • FlexScreen
    • Replacement Option (Retro)
    • Welded Brickmould
    • Breather Tubes
    • Grids Between Glass
    • Meets ENERGY STAR® 7.0 Standards with Triple-Pane glass option in Nothern Climate Zone

Extention Jambs

Laminate Jambs

White laminate Jambs sample swatch
almond laminate Jambs sample swatch
Clay laminate Jambs sample swatch
Black laminate laminate Jambs sample swatch
Light oak laminate laminate Jambs sample swatch
Dark Oak laminate laminate Jambs sample swatch

White

Almond

Clay

Black Laminate

Light Oak Laminate

Dark Oak Laminate

Wood Veneer. Other species available upon request.

Oak laminate Jambs sample swatch
Pine laminate Jambs sample swatch
Maple laminate Jambs sample swatch
Poplar laminate Jambs sample swatch
Primed laminate Jambs sample swatch

Oak

Pine

Maple

Poplar

Primed

Receiver Loose or Applied

  • 3/4"
  • 5/8"

FlexScreen®

Screen Mesh Options:

Fiberglass – Standard

Fiberglass – Clearscene

For additional information and videos on our screens click here.

  • Flat Grids
    • Colonial
    • 1" Wide Horizontal
    • Prairie
    • Heritage
    • Valance
    • 1" Wide Vertical
  • Contoured Grids
    • Colonial
    • Prairie
    • Heritage

  • Clear
  • LoE 272
  • LoE 366
  • Bronze Tint
  • Gray Tint
  • Solar Cool Bronze Tint
  • STC (Sound Transmittance Glass) Acoustic Glass
  • High Elevation Breather Tubes

Glass Tint Options

Gray tint on white background
Gray tint sample glass pane held outdoors in the sun

Gray Tint

Bronze tint example on white background
Bronze tint sample glass pane held outdoors in the sun
Solar cool breeze tint sample glass pane held outdoors in the sun
Solar cool breeze tint held at the sid to see reflective properties

Bronze Tint

Solar Cool Bronze Tint

Glass Pattern Options

Obscure glass pattern option
Obscure glass pattern option held outside
Rain glass glass pattern option
Rain glass glass pattern option held outside

Obscure Glass

Rain Glass

  • STC Rated Acoustic Glass Option

Envision Single-Hung Structural Performance

Size Tested (Inches)

48" x 75"

Air Inflitration

<.04 cfm/ft²

Water Resistance

LC-PG45

Structural Performance

7.52 PSF

Product

Glass

U-Value

R-Value

Solar Heat Gain

Visible Light

Condensation Resistance

With or w/o Grids

With or w/o Grids

w/o Grids

With Grids

w/o Grids

With Grids

With or w/o Grids

Envision Single-Hung Dual Pane

LoE3

0.27

3.70

0.21

0.19

0.51

0.45

57

LoE2

0.28

3.57

0.32

0.29

0.56

0.50

56

Envision Single-Hung Triple Pane


LoE3

0.18

5.56

0.19

0.17

0.36

0.32

72

LoE2

0.18

5.56

0.28

0.25

0.45

0.40

72

Profile Measurements

Overall Frame Size

3 1/4"

Nail Fin Outboard

1 1/8"

Nail Fin Inboard

2 1/16"

Nail Fin Width

1 1/18"

Add-On Jamb Dimentions

Wall Thickness

6 9/16"

6 13/16"

Jamb Size

4 1/2"

4 3/4"

Sizes meeting egress Envision SH
