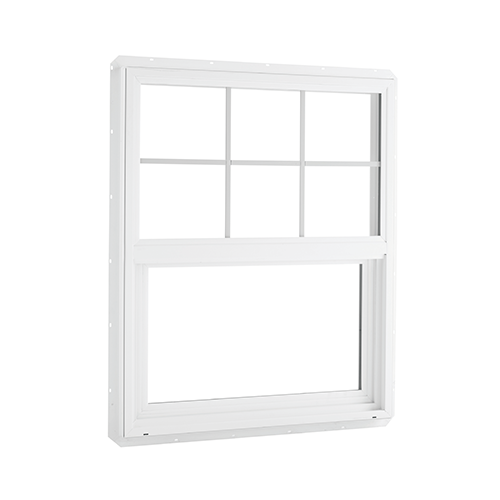

Single-Hung Advantage Windows at Vector
Fusion-Welding
All Vector vinyl single-hung vinyl windows have a fusion-welded main frame and sash for enhanced performance and durability.
Easy Operation
Block and tackle balances provide an extra window lift assist for easy operation, while the removable sash makes cleaning your single-hung vinyl windows easier.
Strong Seal
The integrated full-perimeter nailing fin and pile weatherstrip ensure a weathertight seal to reduce drafts and protect against leaks.
Features
- Metal Reinforced Meet Rail
- Self Cleaning Brass Carriage Rollers
- 2-11/16" Thick Main Frame
- Fusion-Welded Main Frame & Sash
- 3/4" Warm-Edge Insulated Glass
- Continuous Head and Sill on
Multiple Units Up to 8 Feet Wide - Color Coordinated Hardware
- Extruded Slide Handle
- Full-Perimeter Integrated Nail Fin
- Easily Removable Fiber Mesh Screen
- LoE and Argon
Options
Available Finishes
- Window Opening Control Device (WOCD)
- 4" Opening Limit
- Receiver
- 3/4"
- 5/8"
- Custom Sizing
- Replacement Option (Retro)
- Grids Between Glass
Extention Jambs | |||||
Laminate Jambs | |||||
 |  |  |  |  |  |
White | Almond | Clay | Black Laminate | Light Oak Laminate | Dark Oak Laminate |
Wood Veneer. Other species available upon request. | |||||
 |  |  |  |  | |
Oak | Pine | Maple | Poplar | Primed | |
Applied Receiver
- 3/4"
- 5/8"
FlexScreen
For additional information and videos on our screens click here.
- Flat Grids
- Colonial
- 1" Wide Horizontal
- Prairie
- Heritage
- Valance
- 1" Wide Vertical
- Contoured Grids
- Colonial
- Prairie
- Heritage
Product | Glass | U-Value | R-Value | Solar Heat Gain | Visible Light | Condensation Resistance | ||
With or w/o Grids | With or w/o Grids | w/o Grids | With Grids | w/o Grids | With Grids | With or w/o Grids | ||
Advantage Single-Hung Dual Pane | LoE3 | 0.29 | 3.45 | 0.22 | 0.20 | 0.51 | 0.46 | 60 |
LoE2 | 0.30 | 3.33 | 0.33 | 0.30 | 0.57 | 0.51 | 60 | |
